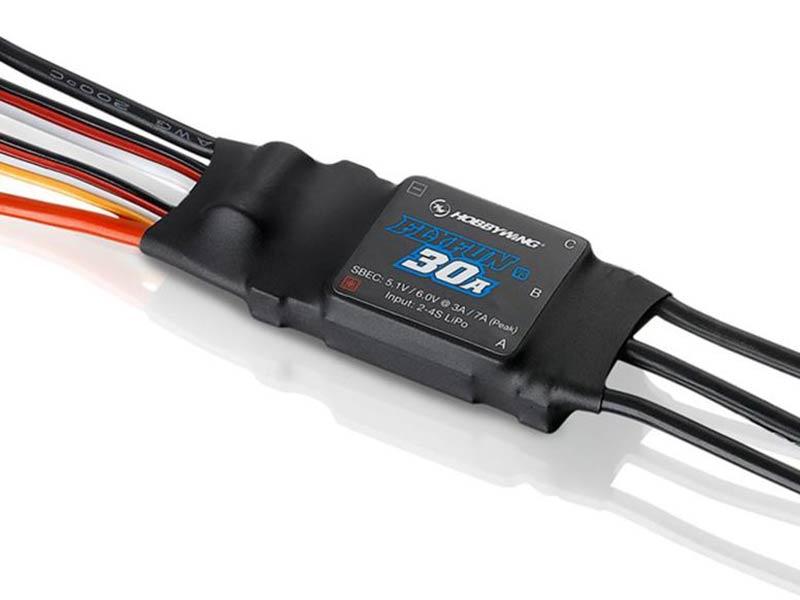

HobbyWing Flyfun 30A V5 ESC (2S-4S)

Quick View

Features: SC which features a high-performance 32-bit ARM M4 microprocessor (with a running frequency of up to 72MHz) is compatible with various brushless motors. Microprocessor powered by a separate DC...
Vendor: HobbyWing
SKU: 30202306

Regular price $23.99

Features:

  • SC which features a high-performance 32-bit ARM M4 microprocessor (with a running frequency of up to 72MHz) is compatible with various brushless motors.
  • Microprocessor powered by a separate DC regulator has better anti-interference performance greatly reduces the possibility of losing control.
  • DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
  • Built-in high-power BEC with output voltage adjustable among 5.2V, 6.0V and 7.4V. The BEC module is separate from other circuits on the ESC, so the normal BEC output can be guaranteed (when issue like burnt power board happens) to allow users to get the aircraft back before crash. (Note: the FLYFUN 80A/120A/130A/160A-HV-OPTO-V5 doesn’t have this function.)
  • Normal/Soft/Very Soft start-up modes are compatible with regular propeller airplanes and EDF jet airplanes (pls ensure to select the “Very Soft Start-up” mode when using EDF jet airplanes).
  • Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
  • Normal/proportional/reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft. (Note: the FLYFUN 130A/160A-HV-OPTO-V5 doesn't have this function.)
  • Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service.
ESC Programming via:
  • Transmitter: Supported
  • LED Program Card: Not Supported
  • LED Program Box: Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
Specifications:

Cont./Peak Current:
30A/50A
Input:
2-4S LiPo
BEC:
Switch Mode: 5.1V/6.0V, 3A/7A
Input /output wire:
16AWG-100mm / 16AWG-75mm*3
Input connector:
NO
Output Connector:
3.5 Gold Connectors (Female)
Size (mm):
50x25x12mm
Weight (g):
32g

Product Spare Parts

T-Motor AT2312 Long Shaft 1150KV Brushless Motor - Fixed Wing
In Stock

T-Motor AT2312 Long Shaft 1150KV Brushless Motor - Fixed Wing

SKU: AT2312

$34.99

T-Motor Aircraft Series - Fixed Wing Domination.Setting the standard for high performance fixed wing aircraft motors, T-Motor has developed the "AT" series of brushless motor power, providing incredible levels of performance and quality for the ultimate in fixed wing aircraft domination.Constructed of aircraft grade materials...

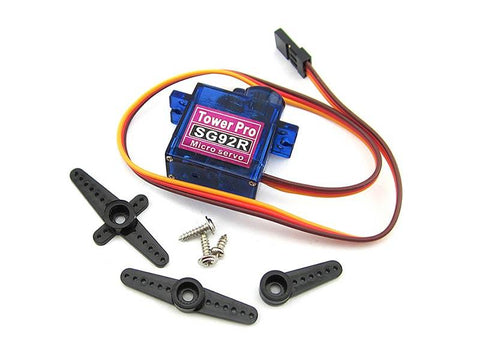

TowerPro SG92R Digital Micro Servo
