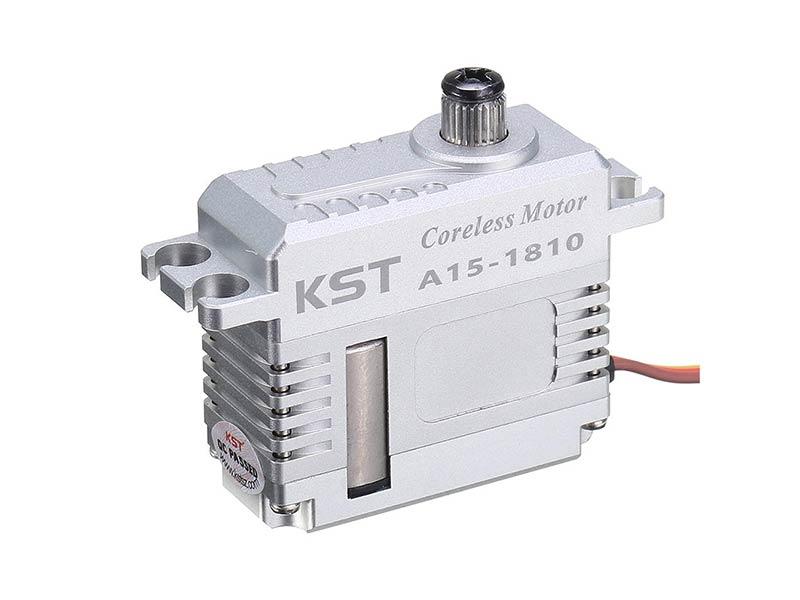

KST A15-1810 18KG Coreless High Torque Metal Gear Digital Servo

Quick View

Description: Brand Name: KSTItem Name: Coreless servoItem NO.: A15-1810 Case Material: Aluminum AlloyMotor Type: CorelessGear Set Material: Phosphor Bronze + Hardened SteelPosition Sensor: PotentionmeterPosition Feedback: OptionalShielded Connecting Cable: 26AWGDimension: 35.5x15x32.5mmWeight: 42gOperation...
Vendor: KST Servo
SKU: A15-1810

Regular price $119.99

Description:

Brand Name: KST
Item Name: Coreless servo
Item NO.: A15-1810
Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Position Feedback: Optional
Shielded Connecting Cable: 26AWG
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: 15Kg.cm@6.0V18Kg.cm@7.4V20Kg.cm@8.4V
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃

PWM Command SIgnal:

Signal Voltage TTL-Level: HIGH: min.3.3V, max.5.0V
TTL-Level: LOW: min.0.0V, max.1.5V
Pulse Lengths 900-2100μs
Pulse Lengths for Position -50° /center/+50°
1000μs/1500μs/2000μs
Resolution <2μs

Package Included:

1x KST A15-1810 Digital Coreless Servo
1x Accessories
